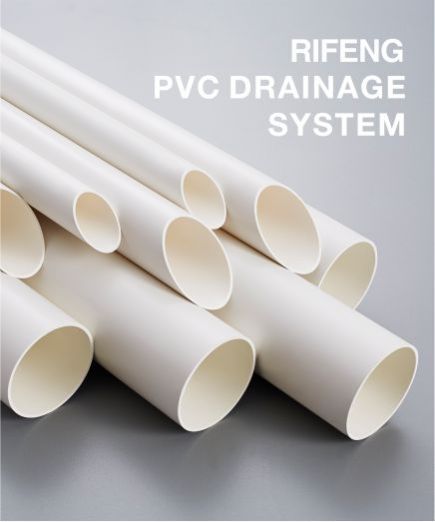

PVC DRAINAGE SYSTEM
RIFENG PVC Drainage Piping System, made of high-quality polyvinyl chloride resins and imported processing additives, has the advantages of high impact resistance, low noise, and smooth inner walls. Moreover, RIFENG has launched its Helix and Hollow Spiral Series, bringing more choices to customers worldwide.
RIFENG PVC Drainage Piping System, made of high-quality polyvinyl chloride resins and imported processing additives, has the advantages of high impact resistance, low noise, and smooth inner walls. Moreover, RIFENG has launched its Helix and Hollow Spiral Series, bringing more choices to customers worldwide.

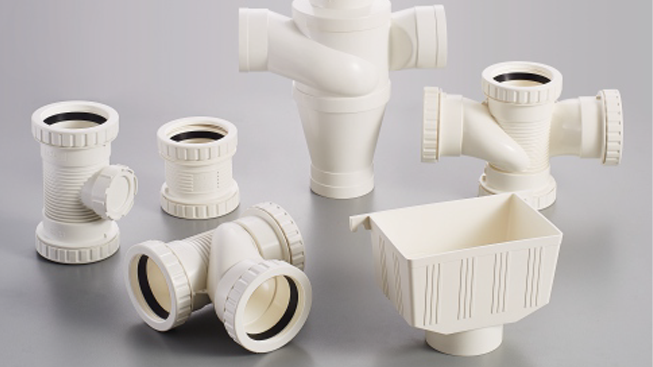

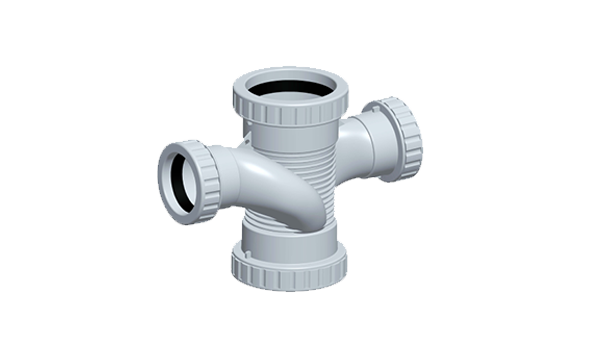

F31 LOW-NOISE FITTINGS
?
?
?
? Low noise
The flow is directed from the circumference to the tangential direction to slow the impact of water and reduce drainage noise.
? Leading Flow
Leading the water down through the helix of vertical pipe naturally, developing property for quick drainage.?

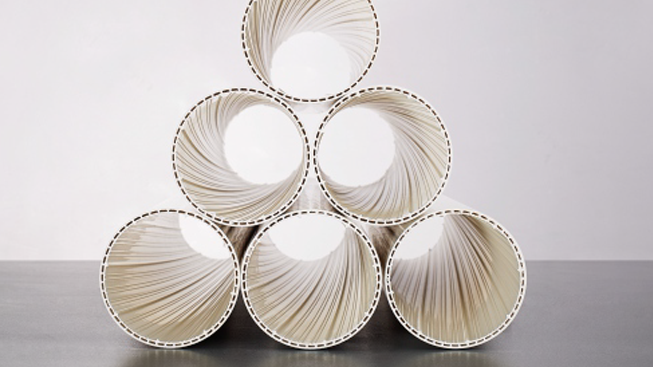

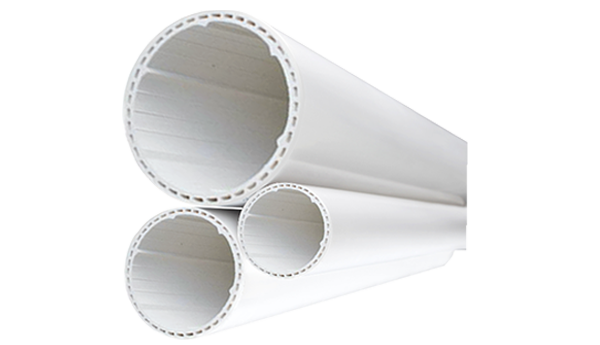

PVC HOLLOW SPIRAL PIPES
?
?
?
? Double noise reduction
The pipe is designed as a double-walled structure with enhanced sound insulation.
? Strong pressure resistance
Hollow porous structure design, the ring stiffness is higher than ordinary solid pipe.?

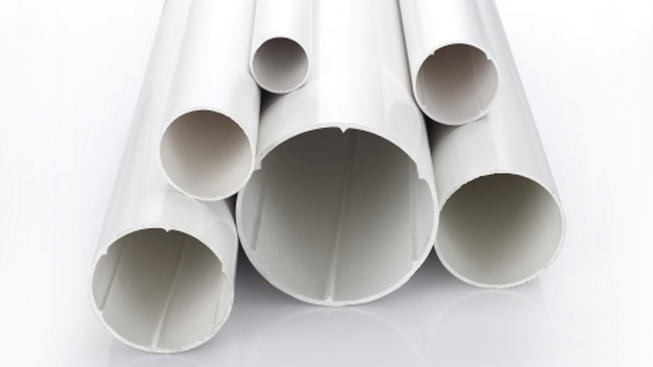

PVC HELIX PIPES
? Low noise
The inner wall is designed with 6 swirling guide columns and the noise is lower than 45 decibels.
? Quick drainage
The flow of DN 110 helix pipe reaches 6L/S, which is two times of general PVC drainage pipe.
Technical specification

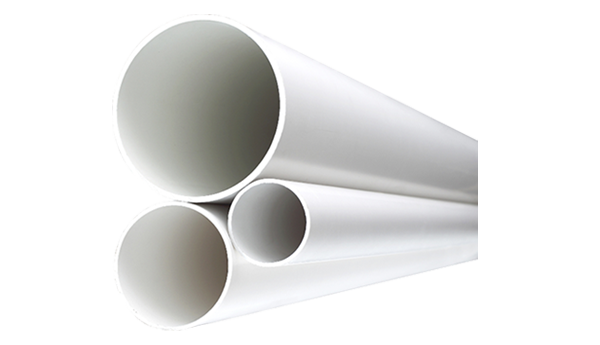

PVC Drainage piping series
Rifeng solid drainage piping series is following GB/T 5836.1-2006 and GB/T 5836.2-2006 standards.
High impact resistance
Excellent physical and chemical property and better tensile strength.
Smooth drainage
Smooth pipe inner wall and seamless adhesive connection between pipe and Fittings.
Stiffeners
F30 fittings feature unique stiffeners which enable the structure to be more stable.
PVC Low-noise piping series
Rifeng's helix low-noise drainage piping series can achieve rotational flow drainage with its unique interior helix structure. Its helix structure can thus greatly reduce noise.
Low noise
The noise produced is lower than 45 decibel.
Quick drainage
The flow of DN 110 helix pipe reaches 6L/S which is the two times of general PVC drainage pipe.
Water seal
The balance of air pressure prevents stink from entering into house.
?
Rifeng solid drainage piping series is following GB/T 5836.1-2006 and GB/T 5836.2-2006 standards.
High impact resistance
Excellent physical and chemical property and better tensile strength.
Smooth drainage
Smooth pipe inner wall and seamless adhesive connection between pipe and Fittings.
Stiffeners
F30 fittings feature unique stiffeners which enable the structure to be more stable.
PVC Low-noise piping series
Rifeng's helix low-noise drainage piping series can achieve rotational flow drainage with its unique interior helix structure. Its helix structure can thus greatly reduce noise.
Low noise
The noise produced is lower than 45 decibel.
Quick drainage
The flow of DN 110 helix pipe reaches 6L/S which is the two times of general PVC drainage pipe.
Water seal
The balance of air pressure prevents stink from entering into house.
?
WaterMark Certificate of Conformity -Level 1
Evaluated to:
AS/NZS 1260:2017- PVC-U pipes and fittings for drain, waste and vent application.
CE marking , a "Symbol of Safety " in the EEA, is verified comply with ISO 3633: 2002-Plastic piping systems for soil and waste discharge (low and high temperature ) inside buildings - Unplasticized poly (vinyl chloride) (PVC-U).
Evaluated to:
AS/NZS 1260:2017- PVC-U pipes and fittings for drain, waste and vent application.
CE marking , a "Symbol of Safety " in the EEA, is verified comply with ISO 3633: 2002-Plastic piping systems for soil and waste discharge (low and high temperature ) inside buildings - Unplasticized poly (vinyl chloride) (PVC-U).
Implementation of the GB/T 5836.1-2006;
Implementation of the GB/T 5836.2-2006;
| No. | Term | Index |
| 1 | Density (kg/m3) | 1350~1550 |
| 2 | Tensile strength MPa | ≧40 |
| 3 | Vicat softening temperature℃ | ≧79 |
| 4 | Dichloromethane impregnated test | Surface changes are not inferior of 4L |
| 5 | Flat test (compress 1/2 of outside diameter) | Sample with no seam |
| 6 | Falling weight impact test TIR | TIR≦10% |
| 7 | Longitudinal shrinkage% | ≦5 |
Implementation of the GB/T 5836.2-2006;
| No. | Term | Index |
| 1 | Density (kg/m3) | 1350~1550? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? |
| 2 | Vicat softening temperature℃? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? | ≧74? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? |
| 3 | Oven test | No crack |
| 4 | Falling test | ? |

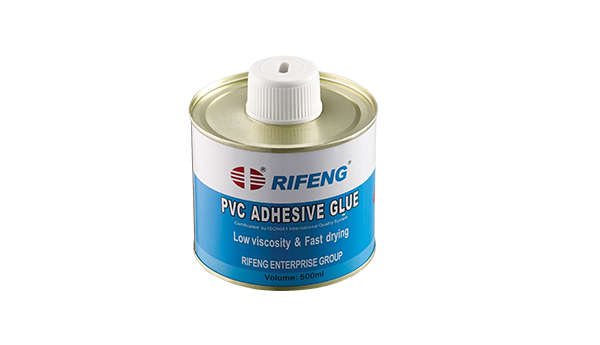

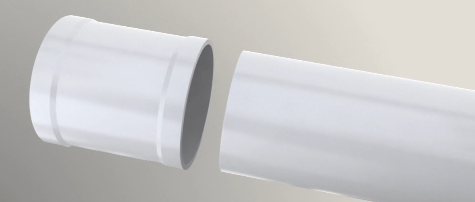

?Seamless adhesive connections between pipes and fittings
?
????????
Product Overview
-

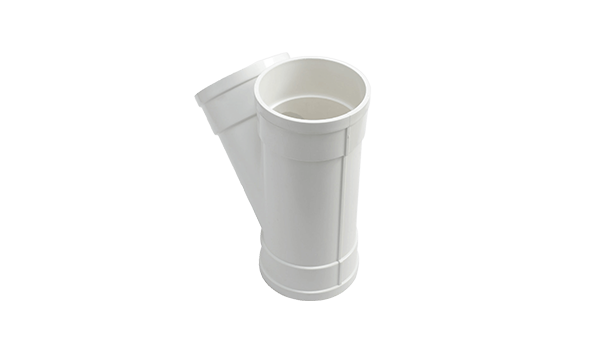

Y-branch tee（45°）
-

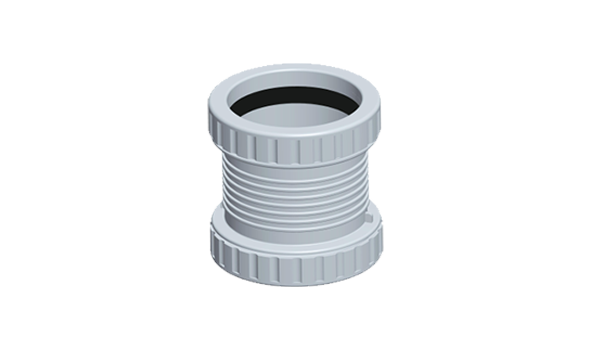

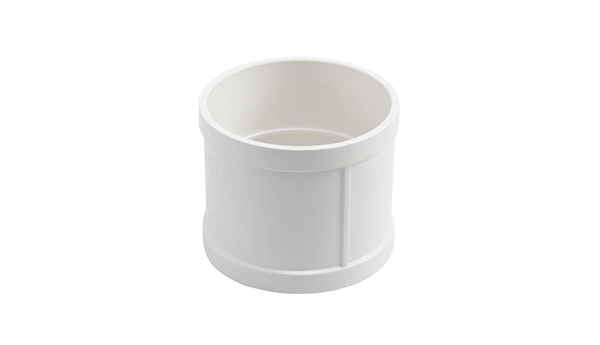

Straight coupling
-

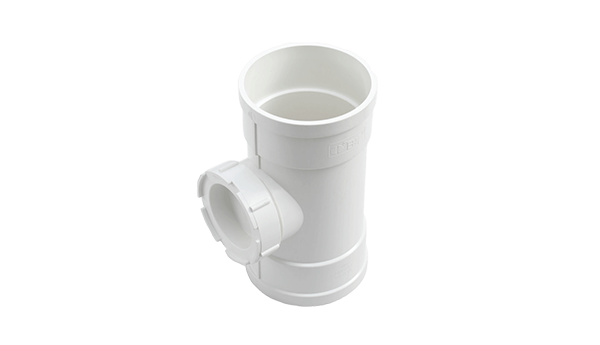

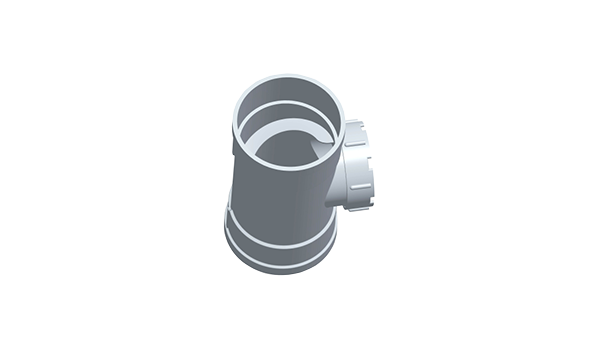

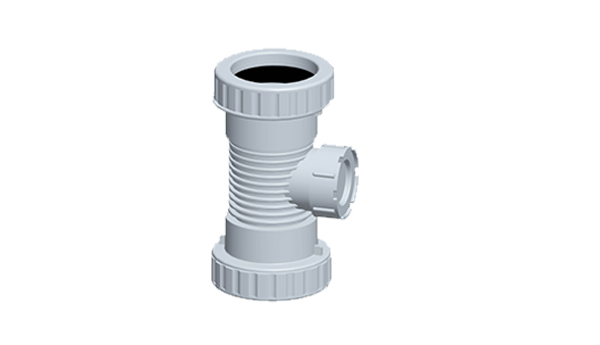

Vertical pipe cleanout
-

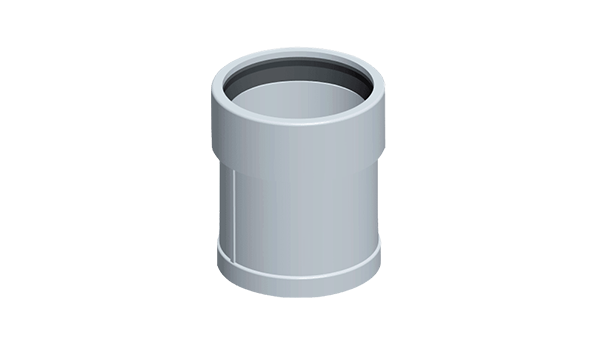

Simple expansion joint
-
Expansion joint
-

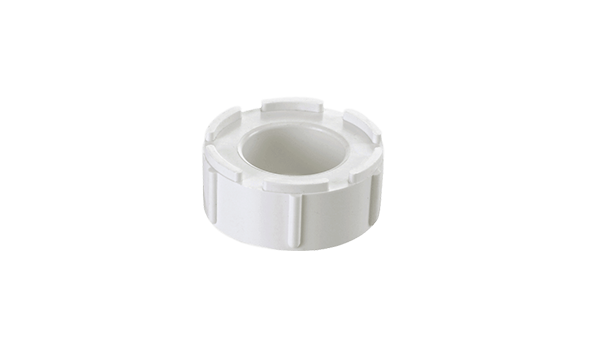

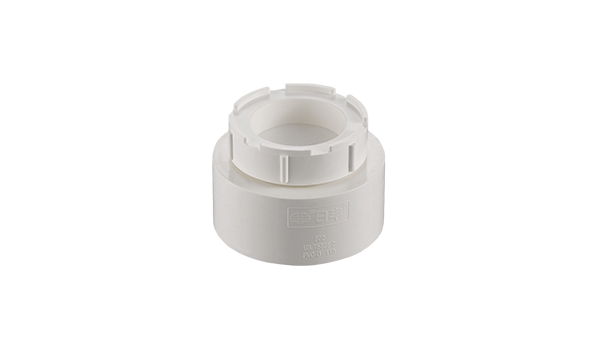

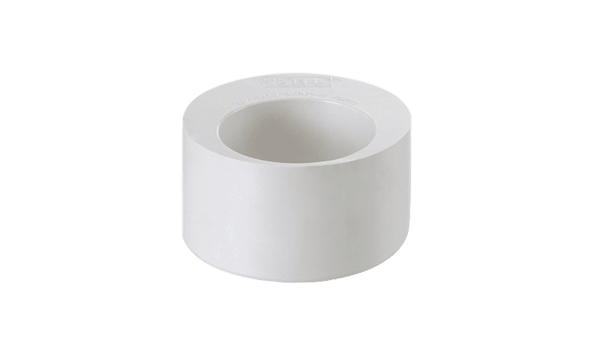

Reducing bush
-

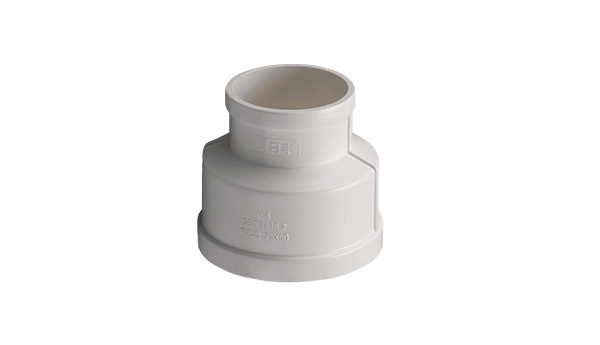

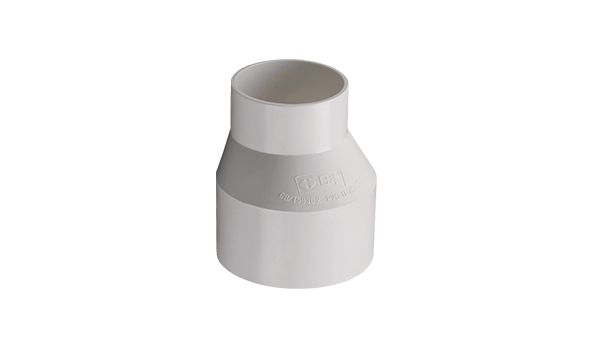

Reducing coupling
-
Decentered reducing coupling
-
Built-in straight connector
-

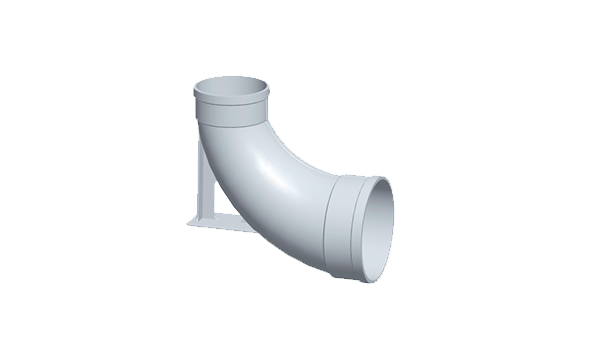

Elbow
-
Elbow with cleanout
-

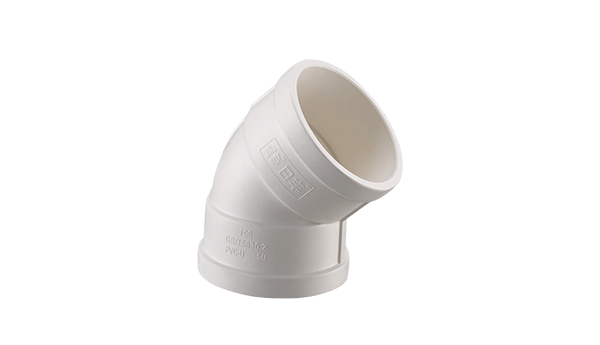

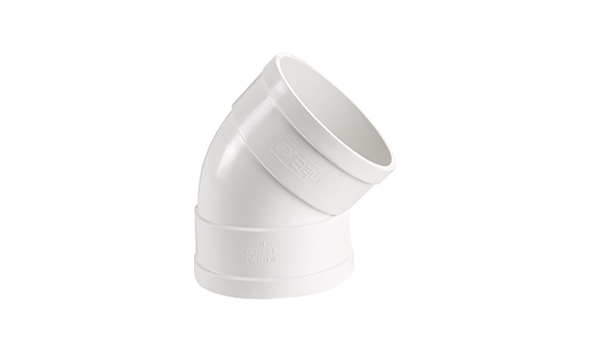

Elbow (45°)
-
Elbow with cleanout (45°)
-
Single socketed elbow（45°）
-

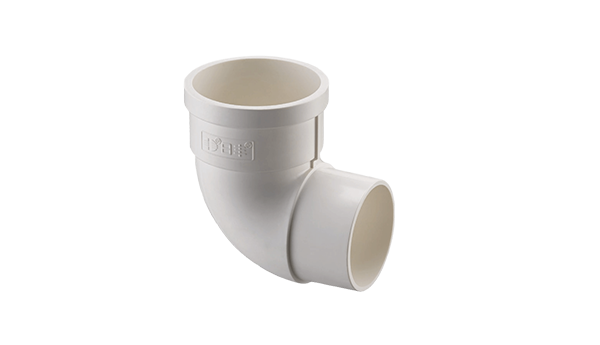

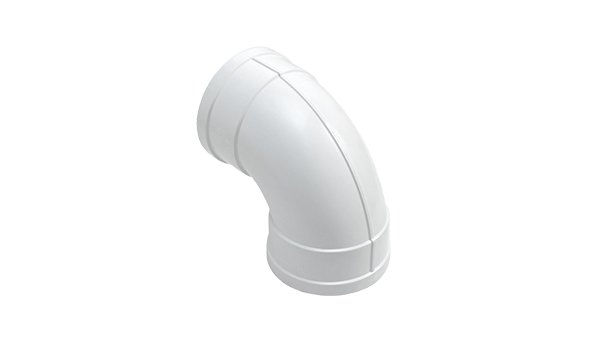

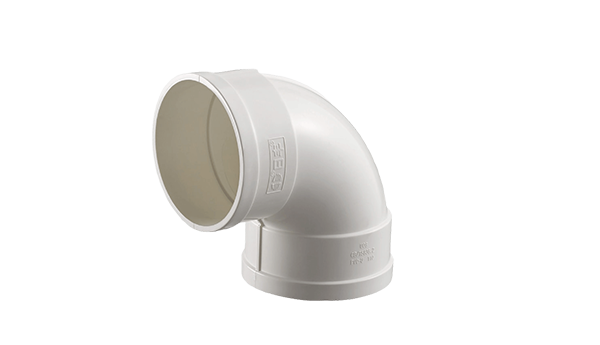

Elbow（88°）
-
Elbow（135°）
-
Elbow with cleanout（135°）
-
Necking elbow
-
Sweep junction
-
Sweep junction with cleanout
-
Reducing sweep junction
-

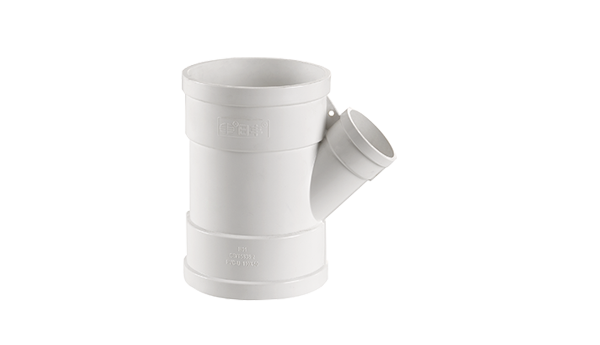

Reducing Y-branch tee（45°）
-

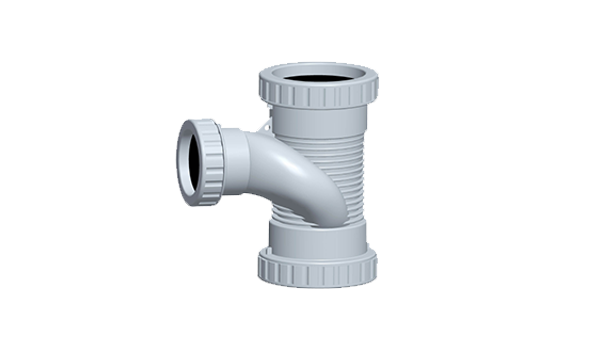

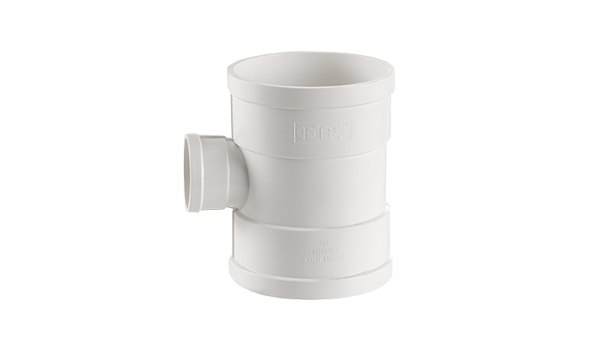

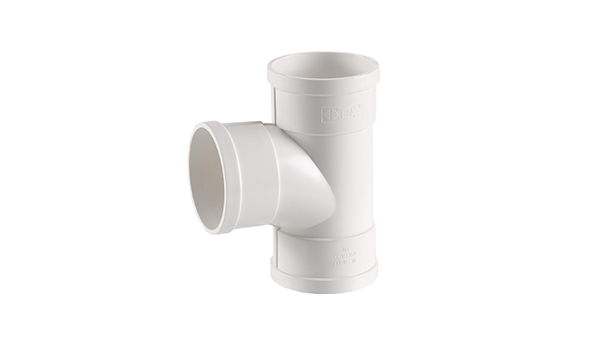

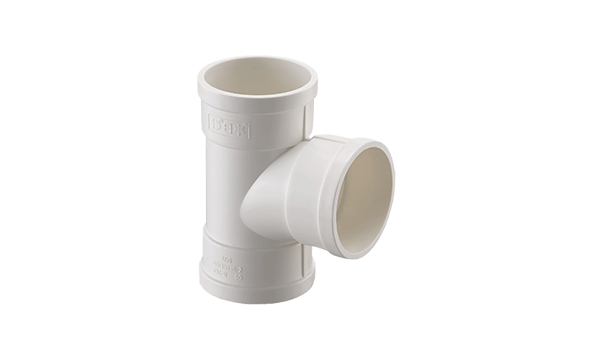

Tee（88°）
-

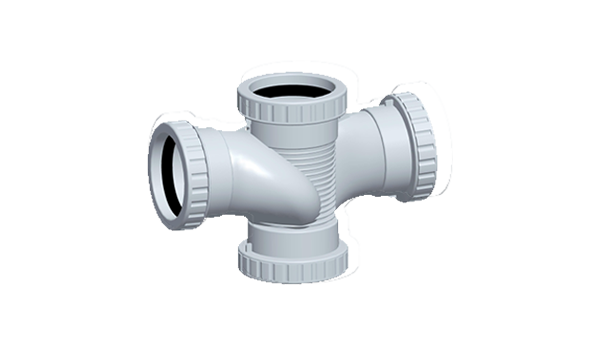

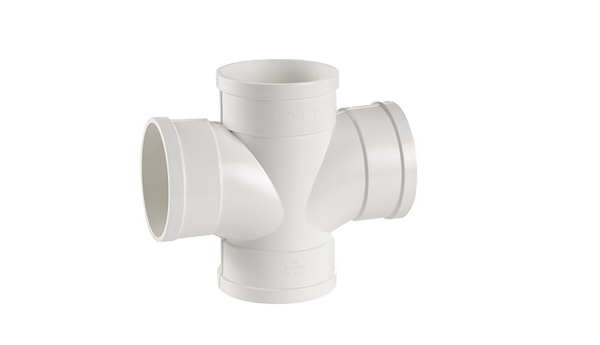

Cross
-

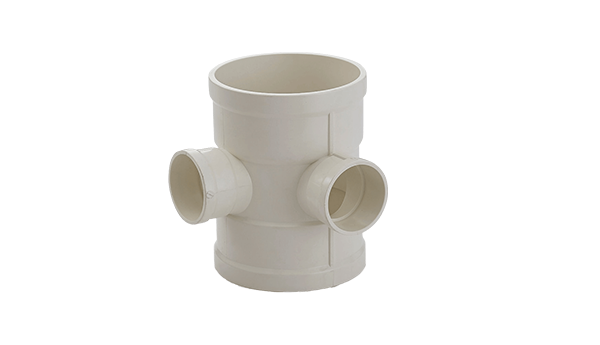

Reducing cross
-

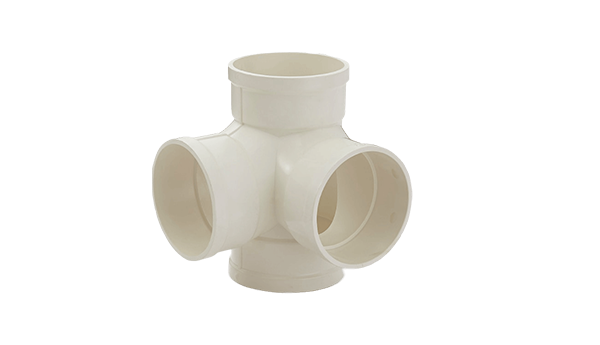

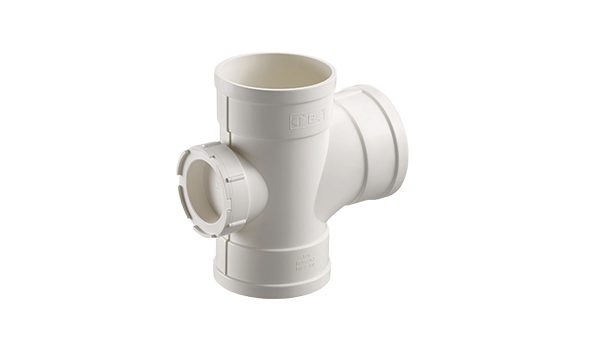

Side Outlet Tee
-
Reducing side Outlet Tee
-

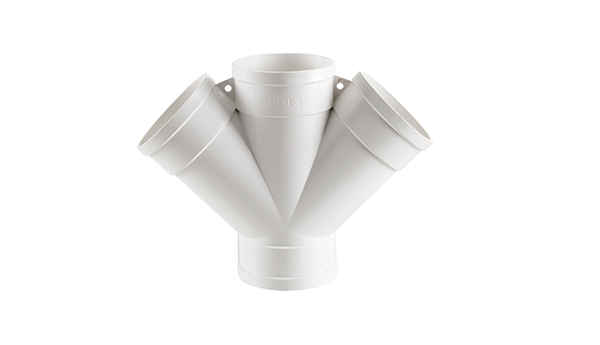

Y-branch cross（45°）
-

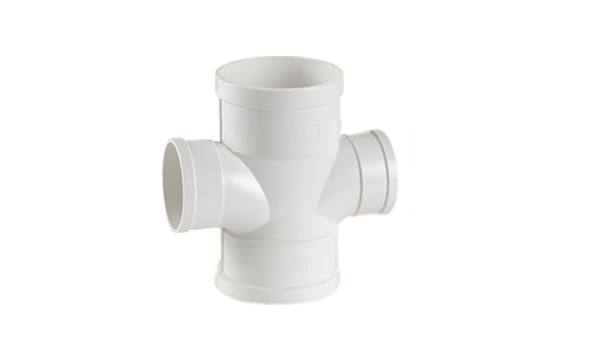

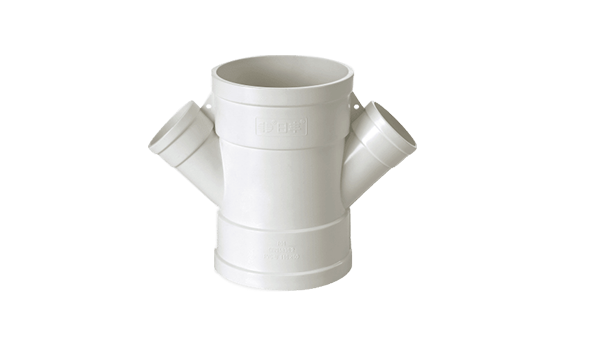

Reducing Y-branch cross（45°）
-

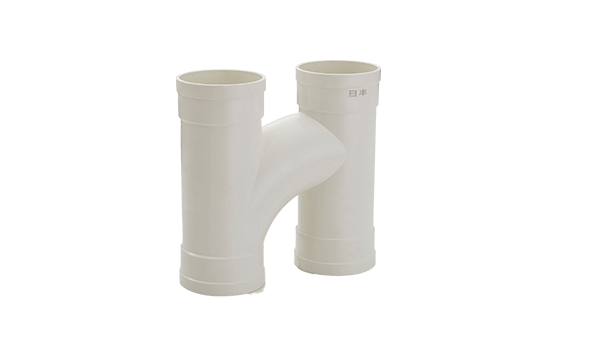

H pipe fitting
-

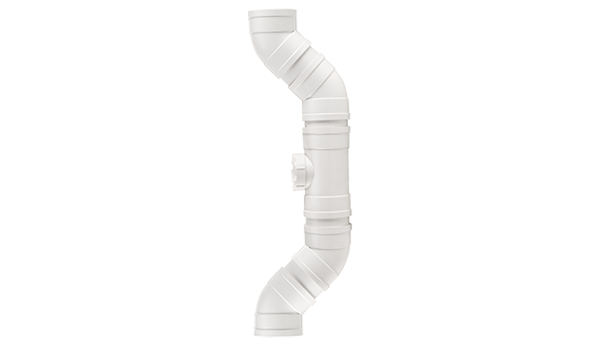

Trap
-
Trap with cleanout
-

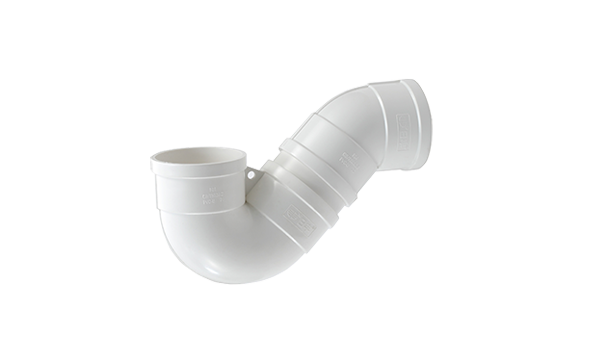

P-Trap
-

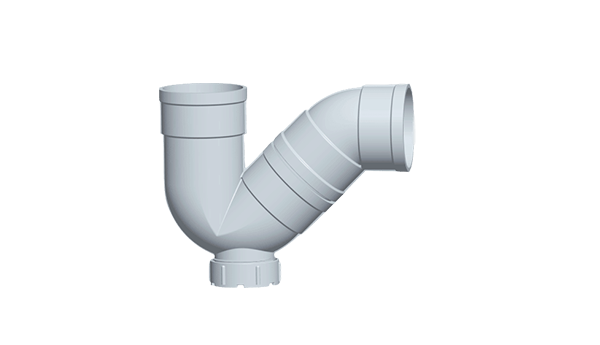

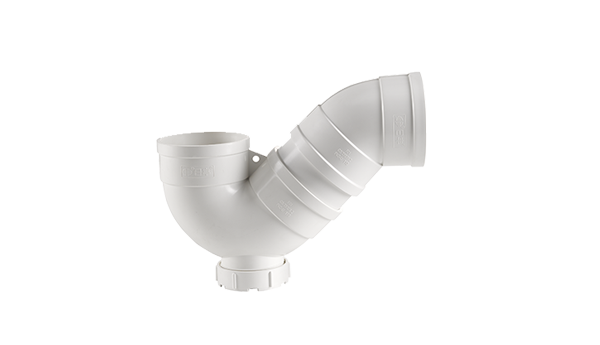

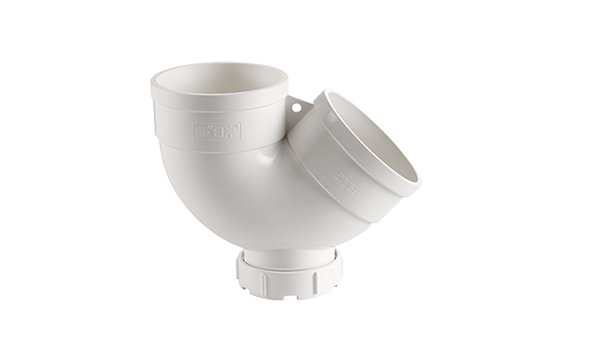

P-trap with cleanout
-
Lengthen P-trap
-

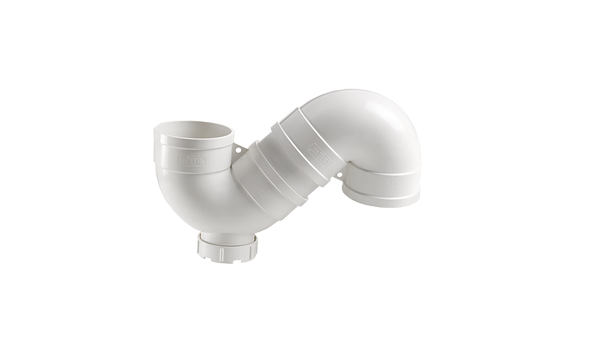

Lengthen P-trap with cleanout
-

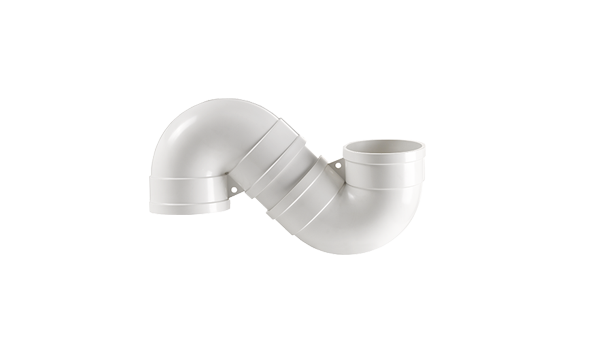

S-Trap
-
S-trap with cleanout
-

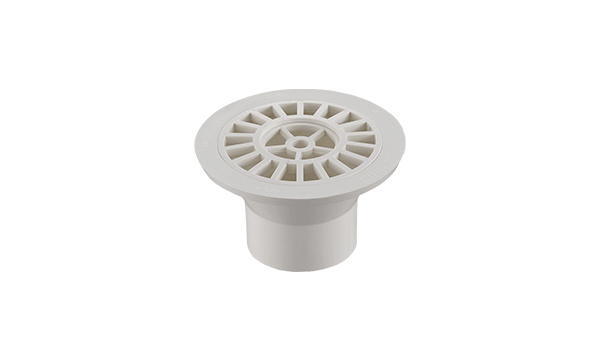

Round water seal floor drain
-

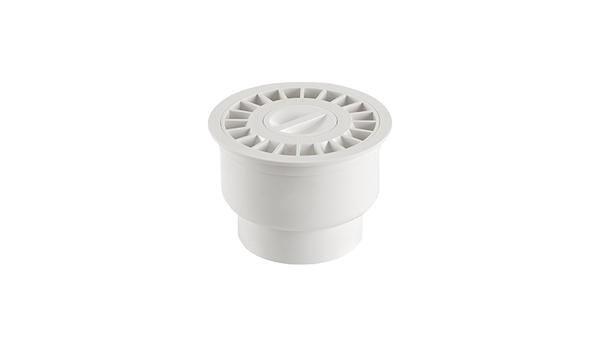

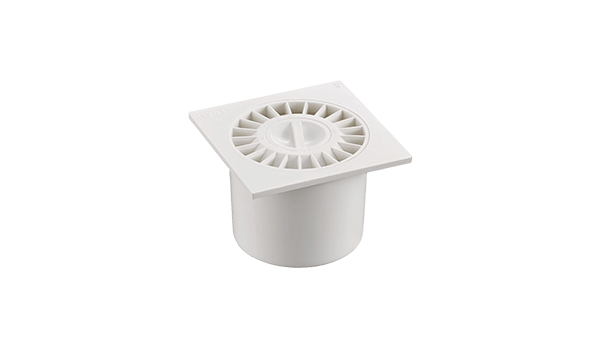

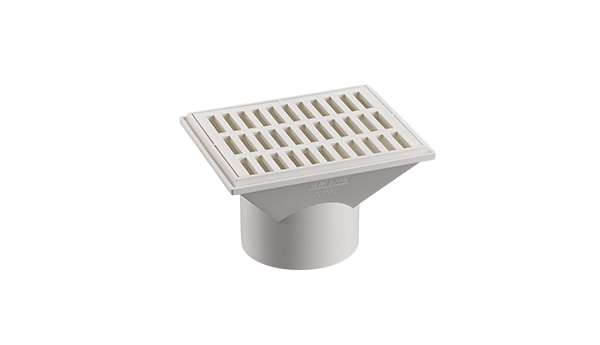

Square water seal floor drain
