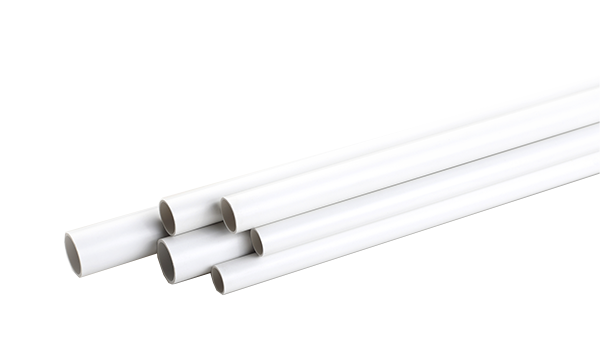

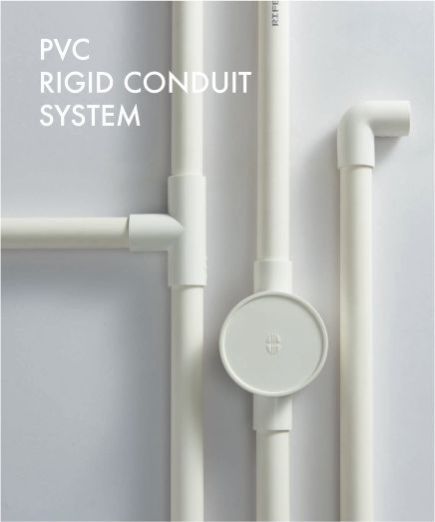

PVC RIGID CONDUIT

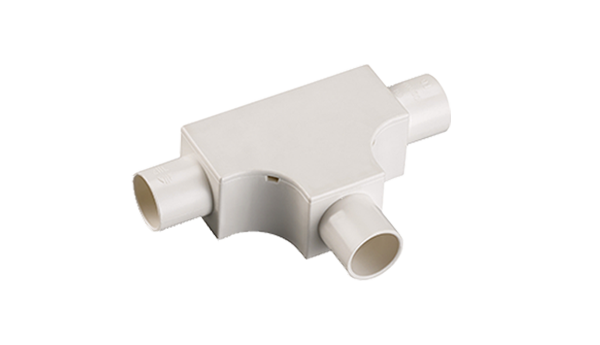

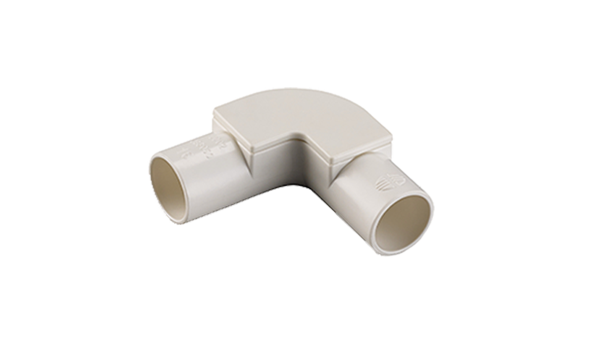

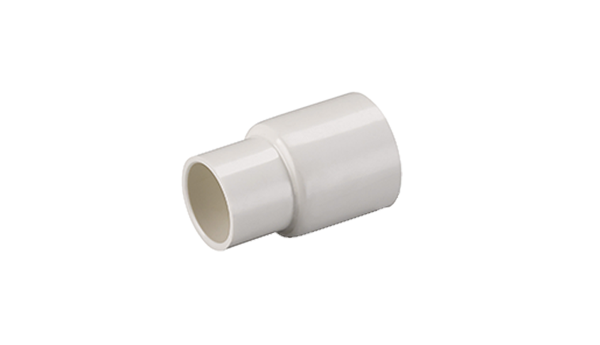

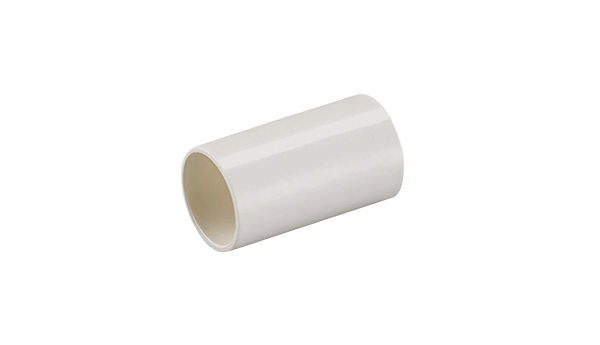

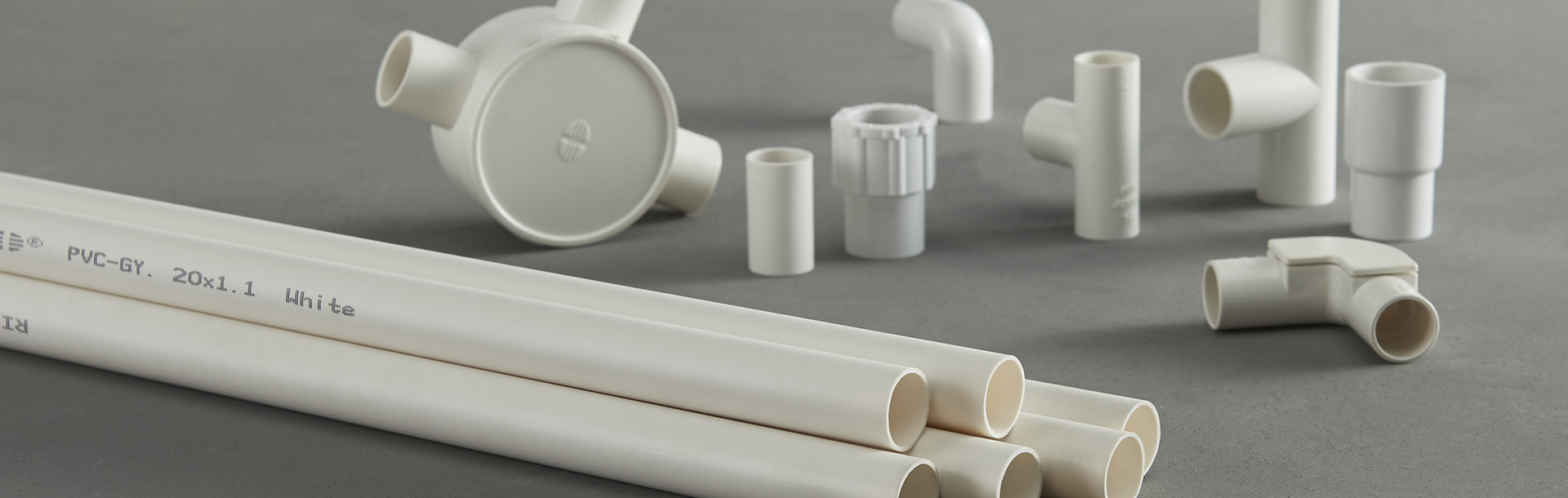

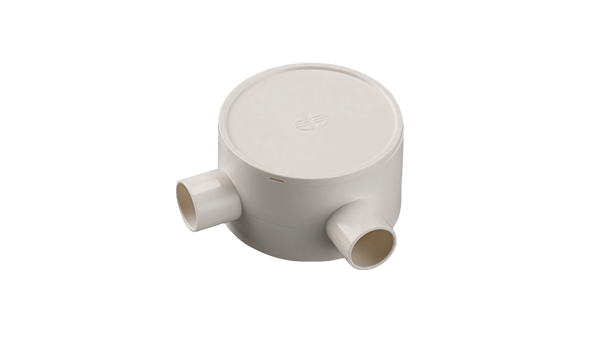

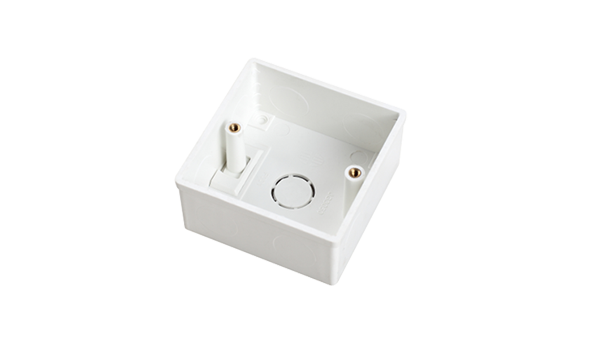

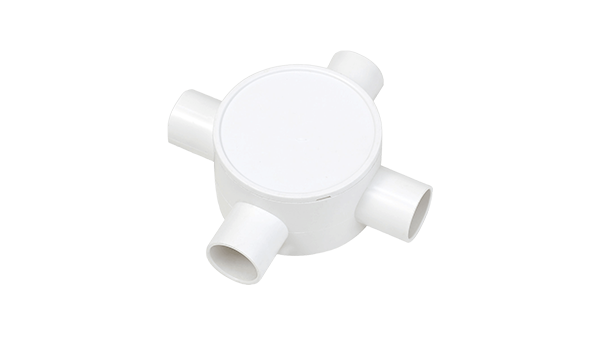

RIFENG offers a complete line of PVC rigid conduit and fittings which are made of high-quality raw materials. For commercial, residential, and industrial applications, RIFENG PVC rigid conduit has been proven to be durable and effective for years of maintenance-free performance underground.
RIFENG offers a complete line of PVC rigid conduit and fittings which are made of high-quality raw materials. For commercial, residential, and industrial applications, RIFENG PVC rigid conduit has been proven to be durable and effective for years of maintenance-free performance underground.

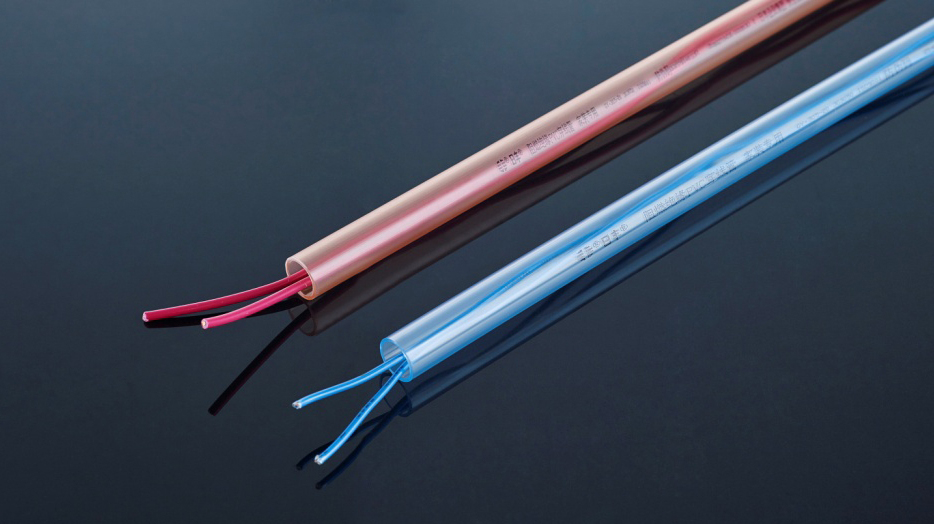

TRANSPARENT RIGID CONDUIT
?
?
?
? The new formulation makes the tube transparent.
? The problems such as inferior, scratch, intermediate connecting and knotting existing in the tube can be visually observed from the outside.
? It also has a smooth interior surface, which reduces friction during wire pull.
?

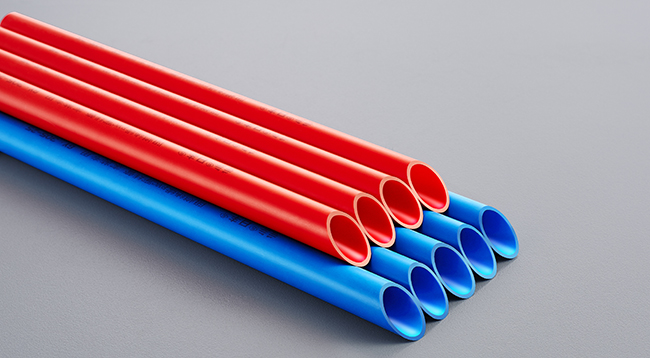

RED & BLUE RIGID CONDUIT
? RIFENG is the first manufacturer to propose the solution separates strong from weak electricity.?
? This system uses a humanized identification method let you to use electric safer.
?
? RIFENG is the first manufacturer to propose the solution separates strong from weak electricity.?
? This system uses a humanized identification method let you to use electric safer.
?
Technical specification
| Nominal size | ? | 16x1.3 | 20x1.5 | 25x1.6 | 32x1.8 |
| Outside diameter | mm | 16 | 20 | 25 | 32 |
| Tolerance of outer diameter (mm) | Min | 15.75 | 19.75 | 24.75 | 24.95 |
| Max | 15.95 | 19.95 | 31.75 | 31.95 | |
| Wall thickness | mm | 1.3 | 1.5 | 1.6 | 1.8 |
| Wall thickness uniformity | ? | ?-2.06≤△A≤+0.26 | |||
| Tolerance of wall thickness (mm) | Min | 1.2 | 1.4 | 1.55 | 1.7 |
| Max | 1.4 | 1.55 | 1.75 | 1.9 | |
| Exterior | Conduit shall be smooth and free of cracks, ridges or burrs. | ||||
| ?Do not damage the wires during installation. | |||||
| Storage temperature | Not less than -5°C/23°F | ||||
| Installation temperature | Not less than -5°C/23°F | ||||
| Long-term working temp. | ?-5°C/23°F ~ 60°C/140°F | ||||
| Flame retardant performance | Self-extinguishes in less than 30 seconds after ignition | ||||
| Oxygen index ≧32% | |||||
| Insulation performance | No breakdown in AC2000V 50 Hz within 15 minutes. | ||||
| ?Insulation resistance≥100MΩ | |||||
| Compression resistance | Load 1min, ≤25% | ||||
| Unloading 1min, ≤10% | |||||
Corrosion Resistant
Resistant to most chemicals, PVC is typically not affected by corrosive soils.And the conduit can be buried in concrete.
Non-conductive
Good insulation, able to resist AC2000V voltage and insulation resistance more than 1x10 Ω.
Self-Extinguishing
Properties make PVC fire resistant.
Impact Resistant

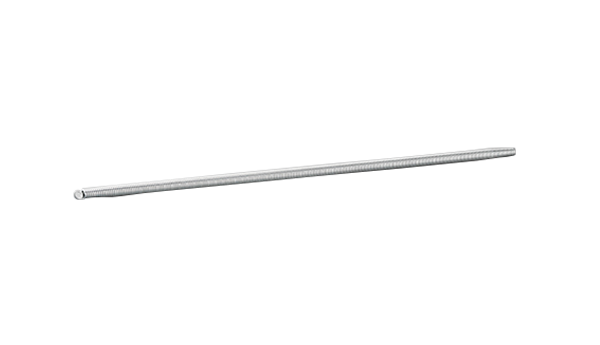

Tough, durable, with high tensile strength, yet easy to install and can be bent by spring under normal temperature.
Attracting appearance
Even color, good appearance, suitable for indoor installation.
?
Resistant to most chemicals, PVC is typically not affected by corrosive soils.And the conduit can be buried in concrete.
Non-conductive
Good insulation, able to resist AC2000V voltage and insulation resistance more than 1x10 Ω.
Self-Extinguishing
Properties make PVC fire resistant.
Impact Resistant
Tough, durable, with high tensile strength, yet easy to install and can be bent by spring under normal temperature.
Attracting appearance
Even color, good appearance, suitable for indoor installation.
?
RIFENG PVC Conduit pipes in accordance with standard IEC-61386.
???????
